453 Audio Gateway Control Unit

Modification Details




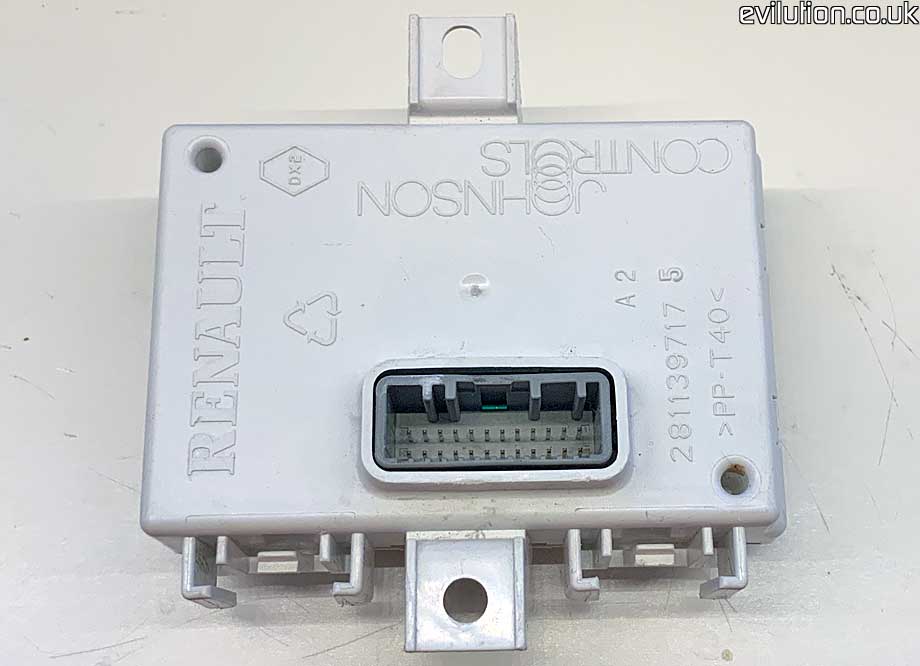

Audio Gateway Control Unit N93/1



Pin Number Wire Colour Function Connects To
1 Green/White Multimedia Controls On/Off Screen Knobs Pin 2
2
3 Red Power Circuit 30 Fuse Box Fuse 14
4
5
6
7
8
9
10
11 Pink/White Multimedia Screen On/Off Screen Pin 5
12 Black/White Earth/Gound Earth/Gound
13
14
15 Brown/White Telematics CAN Bus Low Telematics CAN Bus Network
16 Grey/White Telematics CAN Bus High Telematics CAN Bus Network
17 Green/White Interior CAN Bus Low Interior CAN Bus Network
18 Pink/White Interior CAN Bus High Interior CAN Bus Network
19
20
21
22
23 Pink/White Language Recognition Ground Steering Wheel Pin 4
24 Blue/White Language Recognition Signal Steering Wheel Pin 3
