Under Seat Bass Boxes

Mod Description
The smart may be big inside but there is little room for bass speakers.
Mod Details
PremiumNo Difficulty Mod ID147 CreditVarious Cost££50 - £300 For450 Fortwo451 Fortwo452 Roadster453 Fortwo/Forfour454 Forfour Linkhttps://www.evilution.co.uk/mod/under-seat-bass-boxes.htm Copy to Clipboard
The Best Way To Stay Relevant

Obviously in this sector, there are constant updates and new compact sub woofers brought to market.
To save me from constantly having to add new products and remove old products, it’s easier to just provide
a generic link for you to click. You can click it, find your favourite brand, check the stats and buy it directly.Currently available underseat sub woofers

This is an affiliate link so I make a few GBP if you buy from it.

Personally I have used Alpine, Blaupunkt, Kenwood and Pioneer. They have all been excellent.

Size Requirements

Most subs will fit in a smart but very few will leave you room for much else.
Here is a list of powered subwoofers that are suitable for the smart.

Will It Fit?

I’m not going to guarantee fitting of any of these as the space under the seat seems
to vary depending on the age, mark, type and which side the steering wheel is on.
This is why I have given you the stated sizes of each sub, go and measure it yourself to check.

Underseat Subwoofers

For a bass box to be listed here it has to be able to fit under the seat of a Fortwo or behind the
seat of a Roadster. There are plenty of bass boxes to choose from but not many that fit the smart.So here is a roundup of available bass boxes. I will update the list as and when products are
released. If you know of a bass box that fits the decription then let me know and i’ll add it.

Keep an eye on Ebay and car audio shops that sell old stock for a bargain.


Examples Of Underseat Sub Woofers

Alpine

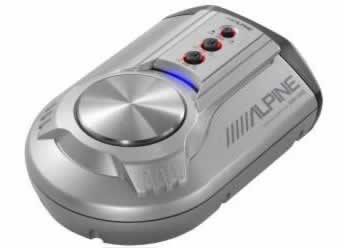

SWD-1600

Peak power 150w
High and Low power inputs (through the same connections)
6.5 inch driver
280mm x 195mm x 92mm


SWE-1000

Peak power 150w
8 inch driver
High and Low power inputs
External controller
250mm x 272mm x 114mm
Thanks to CrazyG for finding this one.

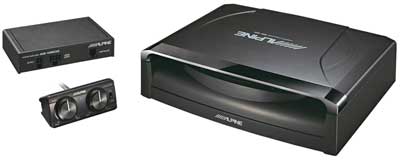

SWE-1200

Peak power 150w
8 inch driver
High and Low power inputs
External controller
280mm x 226mm x 75mm

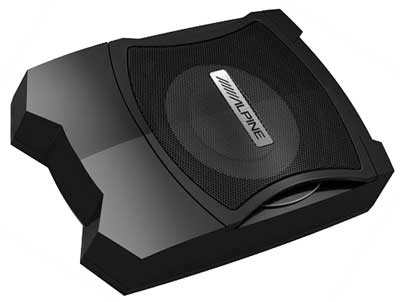

PWE-V80

Peak power 160w
8 inch driver
High and Low power inputs
External controller
342mm x 238mm x 80mm


Armageddon

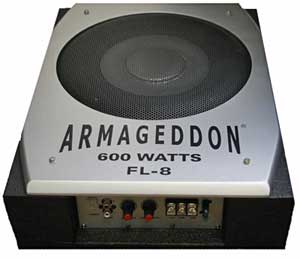

FL-8

RMS 300w, Peak 600W
8 inch driver

High and Low power inputs
400mm x 305mm x 103mm


Auna

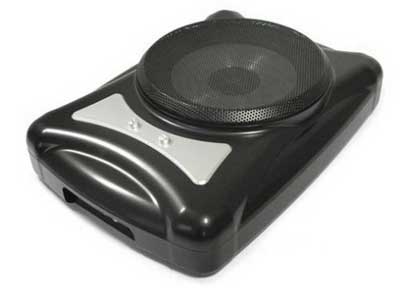

CB200

Peak power 400w
200mm driver
High and Low power inputs
External controller
370mm x 280mm x 90mm


Blaupunkt

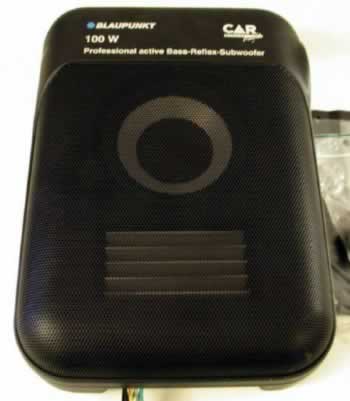

CMS265

Peak power 100w
120mm driver
High and Low power inputs
300mm x 210mm x 81mm


ODSB5000

Peak power 100w
120mm driver
High and Low power inputs
300mm x 210mm x 81mm

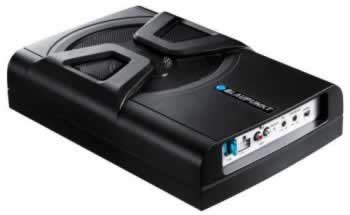

THb200A

Peak power 200w Average power 70w
200mm driver
High and Low power inputs
340mm x 225mm x 71mm

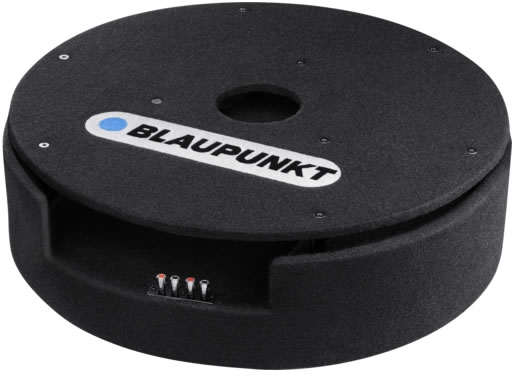

THs 6902

Peak power 500w Average power 150w
2x 6″x9″ drivers
High power input only (passive)
570mm x 165mm
Passive – Requires and external amplifier.


Boss

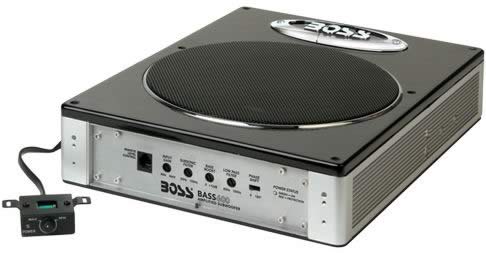

Bass-600



RMS 200w, Peak 600W
8 inch driver
External controller
High and Low power inputs
350mm x 250mm x 65mm

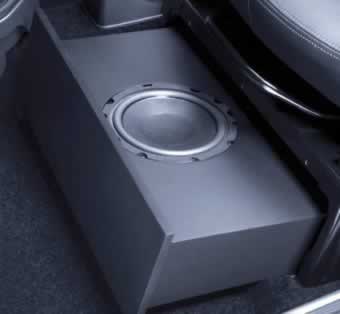

Brabus



16cm driver
Fits under the seat
Costs 2 or 3 times the other units on this page
No better than the other units on this page


Carrozzeria
See Pioneer.


Clarion

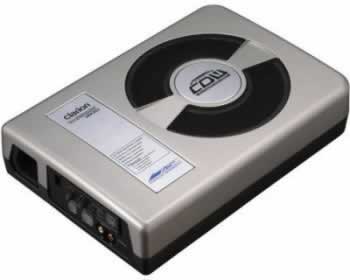

SRV-303



Peak power 120w Average power 60w
7 inch driver
External controller
High and Low power inputs
330mm x 230mm x 100mm

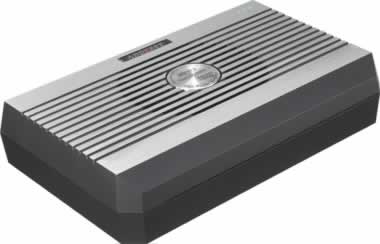

SRV-313

Peak power 120w Average power 60w
17cm driver
External controller
High and Low power inputs
310mm x 210mm x 65mm




Focal

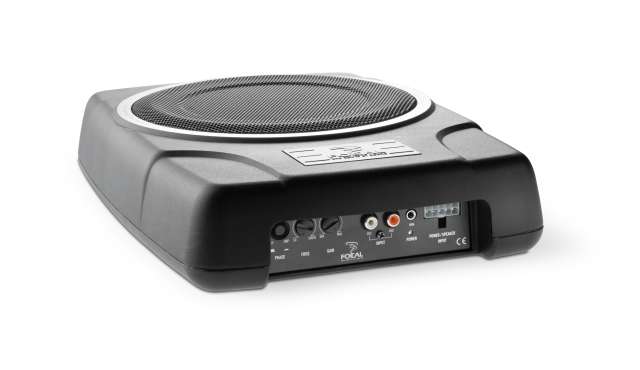

Bus20



Peak power 120w Average power 60w
8 inch driver
External controller
High and Low power inputs
348mm x 242mm x 76mm
Thanks to CrazyG for finding this one.

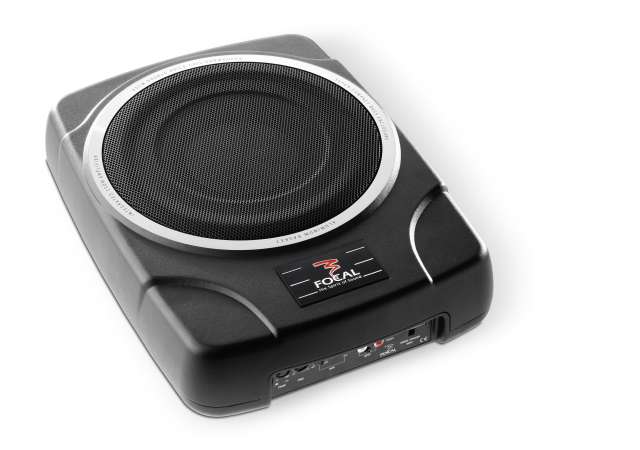

Bus25

Peak power 120w Average power 60w
10 inch driver
External controller
High and Low power inputs
371mm x 277mm x 80mm
Thanks to CrazyG for finding this one.

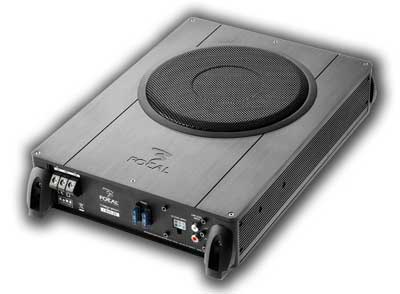

iBus 2.0

Peak power 150w Average power 75w
8 inch driver
External controller
High and Low power inputs
344mm x 250mm x 71.5mm
Thanks to Gurcharan for finding this one.




In Phase

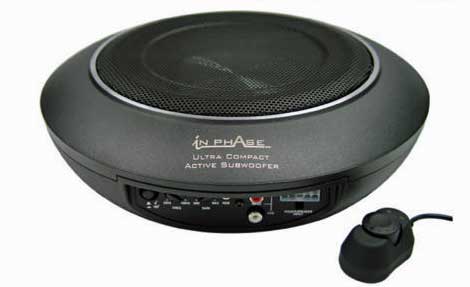

USW10

Peak power 300w Average power 100w
6.5″ driver
External controller
High and Low power inputs
270mm Diameter x 69mm
Thanks to CrazyG for finding this one.


Kenwood

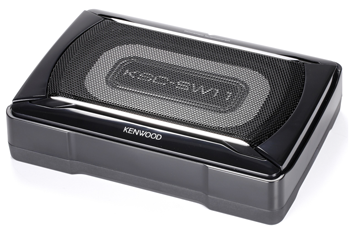

KSC-SW11

Peak power 150w
16cm oval driver

External controller
High and Low power inputs
280mm x 190mm x 70mm
Thanks to Marc S for finding this one.

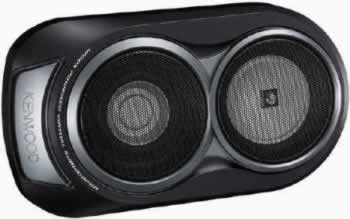

KSC-WA62RC

Peak power 90w
13cm driver
External controller
High and Low power inputs
380mm x 210mm x 120mm

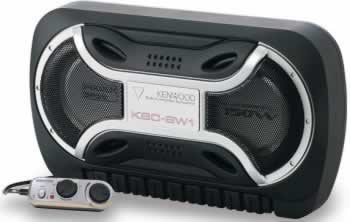

KSC-SW1

Average power 75w
6.5 inch driver
External controller
High and Low power inputs
400mm x 230mm x 95mm

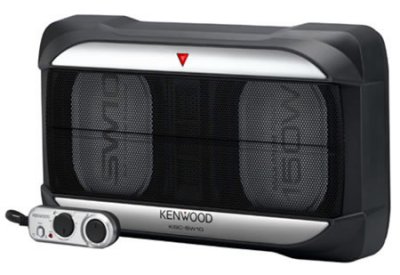

KSC-SW10

Peak power 150w
7 inch oval driver
External controller
High and Low power inputs
369mm x 224mm x 94mm


KSC-SW01

Peak power 150w
160mm inch oval driver
External controller
High and Low power inputs
270mm x 180mm x 70mm
Thanks to CrazyG for finding this one.




Kicker

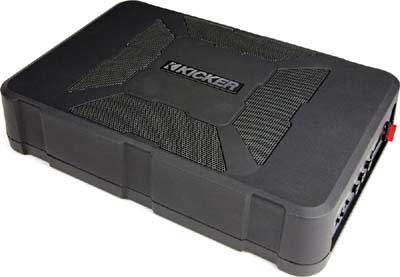

11HS8

150W RMS
8 inch driver
External controller
High and Low power inputs
362mm x 241mm x 80mm




Lanzar

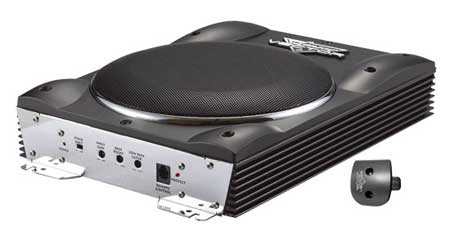

VCTBS8

Max power 600W
RMS 300W
8 inch driver
External controller
High and Low power inputs
368mm x 241mm x 76mm


MQB

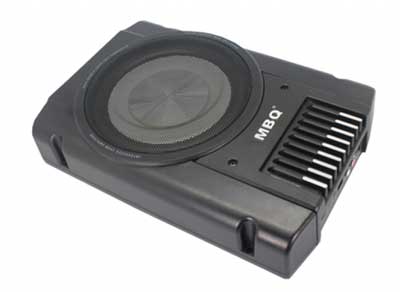

PB12

Max power 150W
20cm driver
External controller
High and Low power inputs
346mm x 240mm x 75mm
Thanks to David C for this one.


Mutant

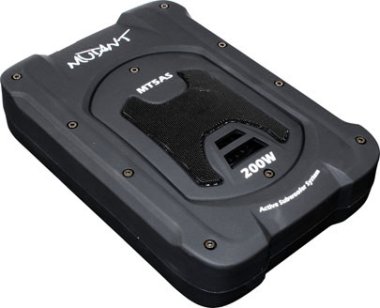

MT-5AS

Max power 100w, Peak 200W
RMS 50W
5.25 inch driver
External controller
High and Low power inputs
287mm x 195mm x 60mm

This can also be bought at Ripspeed/Halfords as a rebadged unit.




Pioneer

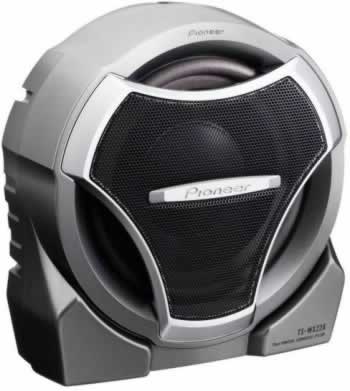

TS-WX22A

Peak power 150w
20cm driver
High and Low power inputs
250mm x 265mm x 110 mm

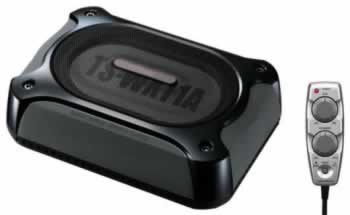

TS-WX11A

Peak power 150w, RMS 50w
21cm x 13cm oval driver
External controller
High and Low power inputs
280mm x 200mm x 80 mm

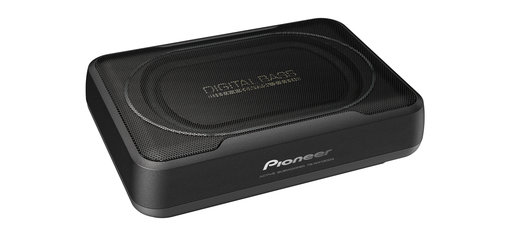

TS-WX130DA

Peak power 160w, RMS 50w
20cm x 13cm oval driver
External controller
High and Low power inputs
280mm x 200mm x 70 mm
Thanks to Javier for finding this one.

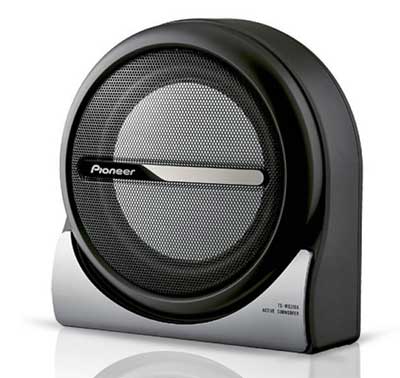

TS-WX210A

Peak power 150w, RMS 50w
20cm driver
External controller
High and Low power inputs
250mm x 265mm x 110 mm

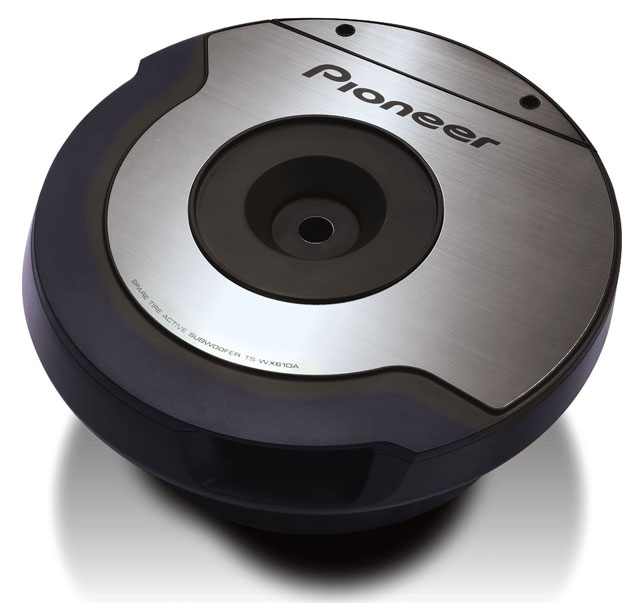

TS-WX610A

Peak power 200w, RMS 50w
2x10cm driver
External controller
High and Low power inputs
388mm x 144mm


Rainbow

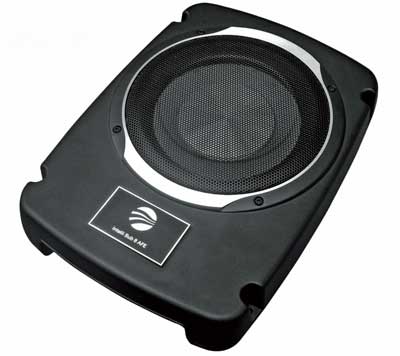

Intelli Sub 8 AFE

RMS 100w, Peak 160W
20cm driver
External controller
High and Low power inputs
345mm x 240mm x 74mm

Intelli Sub 10 AFE

RMS 100w, Peak 160W
25cm driver
External controller
High and Low power inputs
369mm x 275mm x 82mm
Thanks to Joe for finding these ones.


Ripspeed

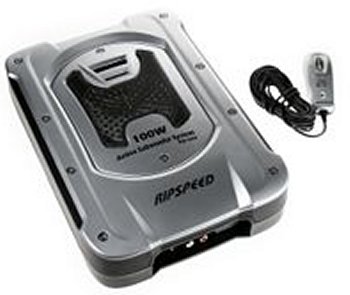

PSR-135A

Max power 100w, Peak 200W
RMS 50W
5.25 inch driver
External controller
High and Low power inputs
287mm x 195mm x 60mm

This is a rebadged and repainted Mutant MT-5AS.

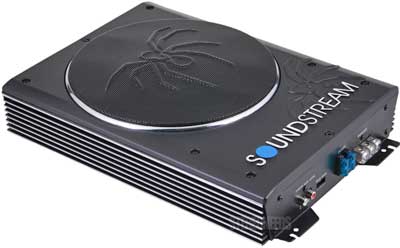

Soundstream
AL-10AS

Max power 150W
8 inch driver
External controller
High and Low power inputs
368mm x 241mm x 76mm


Steelmate

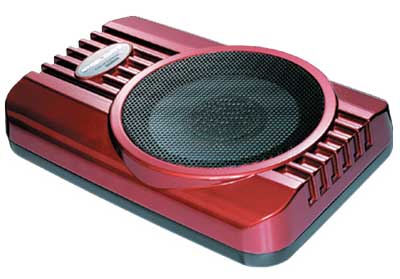

SW826

Max power 80w, Peak 140W
RMS 40W
8 inch driver
High and Low power inputs
348mm x 232mm x 69 mm
Available in red or silver
Thanks to Yuri for finding this one.

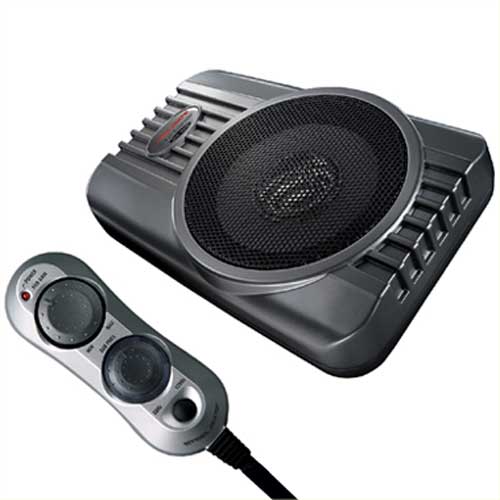

SW826V

Max power 56w, Peak 288W
RMS 40W
8 inch driver
Wired remote
High and Low power inputs
348mm x 232mm x 69 mm
Thanks to CrazyG for finding this one.

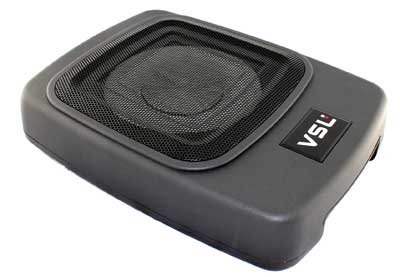

VSL


AL-10AS

Max power 180W
10 inch driver
External controller
High and Low power inputs
360mm x 280mm x 80mm

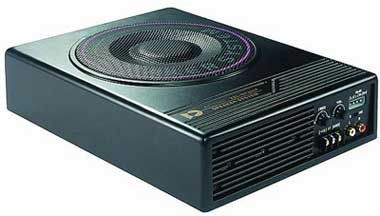

XXL Evidence


Model unknown

Peak power 120w
8 inch driver
High and Low power inputs
230mm x 310mm x 70mm
Thanks to CrazyG for finding this one.


Compact Subwoofers

The following won’t fit under or behind the seat but has sufficient dimensions
to make it suitable to fit in the car like in the boot/trunk.

Alpine

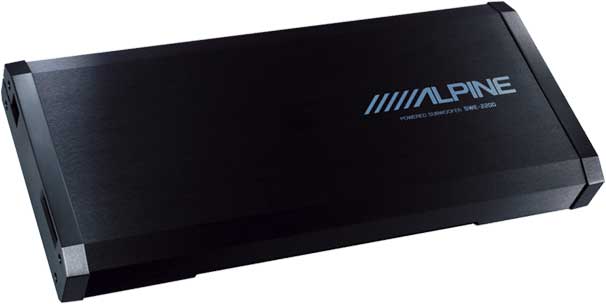

SWE-2200

Peak power 150w
2x 20cm driver
High and Low power inputs
External controller
800mm x 350mm x 92mm

Pioneer/Carrozzeria


TS-WX77A

Max power 100w, Peak 200W
RMS 50W
External controller
16cm driver
High and Low power inputs
890mm x 350mm x 82mm

Thanks to Jan for finding this one.

Japan also gets the following Pioneer (branded Carrozzeria) compact subs.

TS-WX99A
TS-WX66A

What It All Means

Peak power – a figure given out that makes the unit look more powerful than it is.
Average power – sometimes called RMS, this is the real power of the unit.
Driver size – the diameter of the cone of the speaker in the unit.
Low inputs – Connected to unamplified RCA outputs.
High inputs – Connected directly to the stereo speaker outputs.
External controller – all controls are duplicated on a wired remote.
Dimensions – overall size of the unit.
