453 Headlight Pinout

Modification Details




Pre Facelift Headlight - Basic




Pin Number  Wire Colour Function/Connection
1 Grey Standing Light Signal
2 Blue Standing Light +
3 Green Low Beam
4 Black Earth/Ground
5 Pink High Beam
6 N/C

Pin Number Wire Colour Function/Connection
1 N/C
2 N/C
3 N/C



Pre Facelift Headlight - Premium




Pin Number  Wire Colour Function/Connection
1 Grey Standing Light Signal
2 Blue Standing Light +
3 Green Low Beam
4 Black Earth/Ground
5 Pink High Beam
6 Pink DRL +

Pin Number Wire Colour Function/Connection
1 N/C
2 N/C
3 Pink/Brown DRL Control / SAM Unit

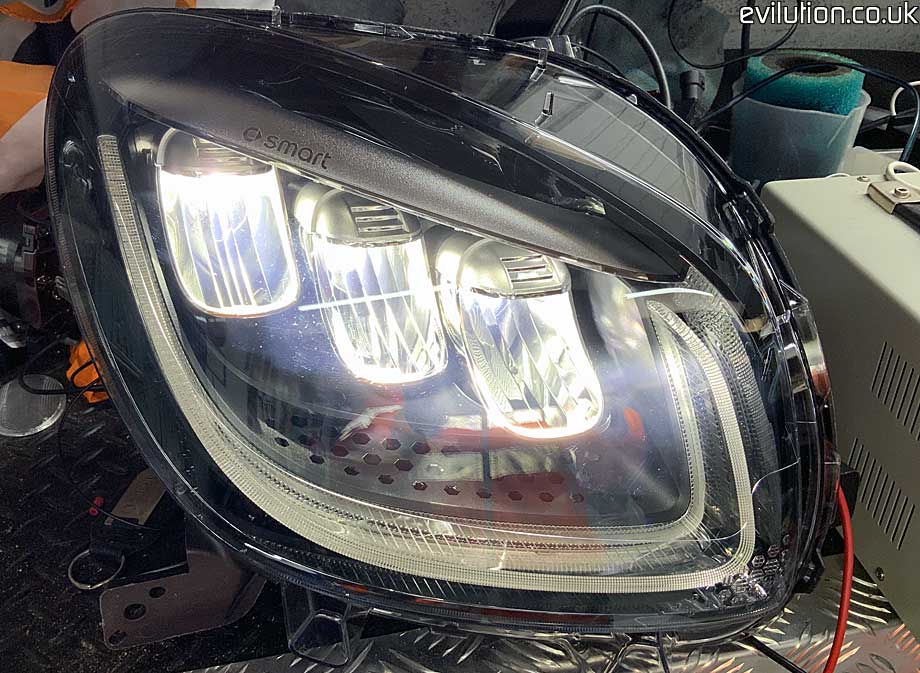

Facelift Headlight - Full LED

I do NOT have a car with these fitted as standard and I do NOT have access to the wiring diagram for these headlight.
The connections shown below are from what I have worked out by experimenting on an LED headlight.

The wire colours are all unknown so I have guessed.

Pin Number Wire Colour Function/Connection
1 Grey DRL Power
2 Blue DRL Control
3 Green Low Beam
4 Black Earth
5 Grey High Beam
6 Pink Indicator

Pin Number Wire Colour Function/Connection
1 Unknown Unknown
2 N/C
3 N/C
