450 Clutch Actuator Testing

Mod Description
Testing an item off of the car can prove if it is working or not. Bench testing allows you to narrow down your searches if something is faulty as it allows the individual testing of complicated items.
Mod Details
PremiumYes Difficulty Mod ID861 CreditRoger F For450 Fortwo Linkhttps://www.evilution.co.uk/mod/450-clutch-actuator-testing.htm Copy to Clipboard

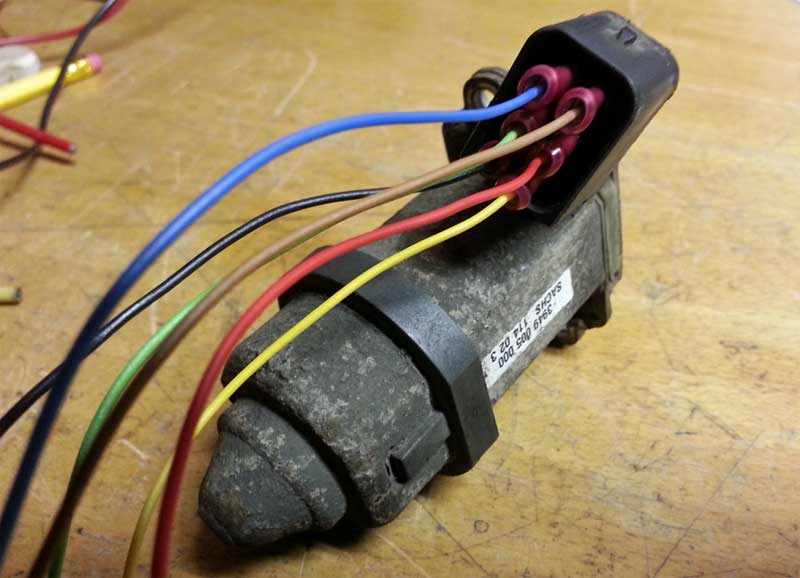

Bench Testing The 450 Clutch Actuator

Pin Wire colour in photo Function
1 Black 0V
2 Green Channel A
3 Blue Motor 1
4 Yellow Channel B
5 Red +5V
6 Brown Motor 2

Attention

The rest of the information held in this guide is locked to Supporter 6, Supporter 12, Supporter 12+, and Business members of Evilution only.

Use the buttons below to login or find out about becoming a premium member.
