450 fortwo Belt Change

Mod Details
PremiumYes Difficulty Mod ID1517 Creditevilution For450 Fortwo Link Copy to Clipboard

This page covers the AC belt and alternator/water pump belt.

Air Conditioning Belt

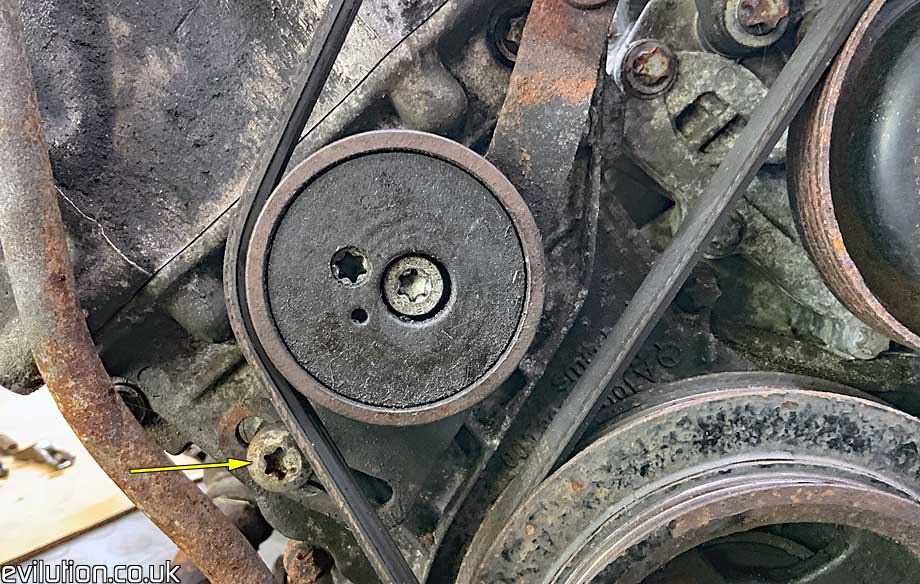

Look at the right hand side of the engine. It’s not easy to see. Find the tensioner pulley wheel. Use a Torx45 bit to loosen the screw arrowed in the photo below.

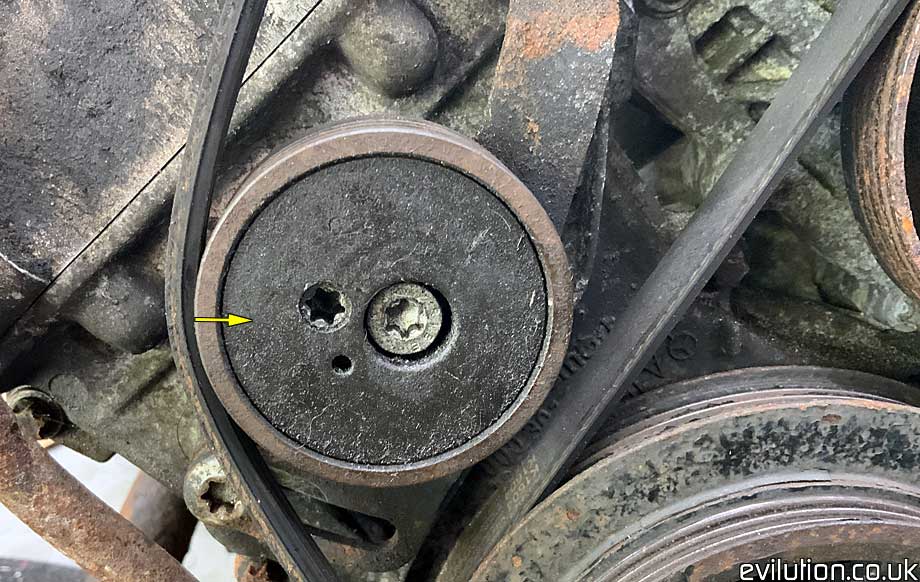

Push the pulley wheel towards the front of the car to remove the tension from the belt.

Using a Torx 40, Loosen the central bolt slightly.

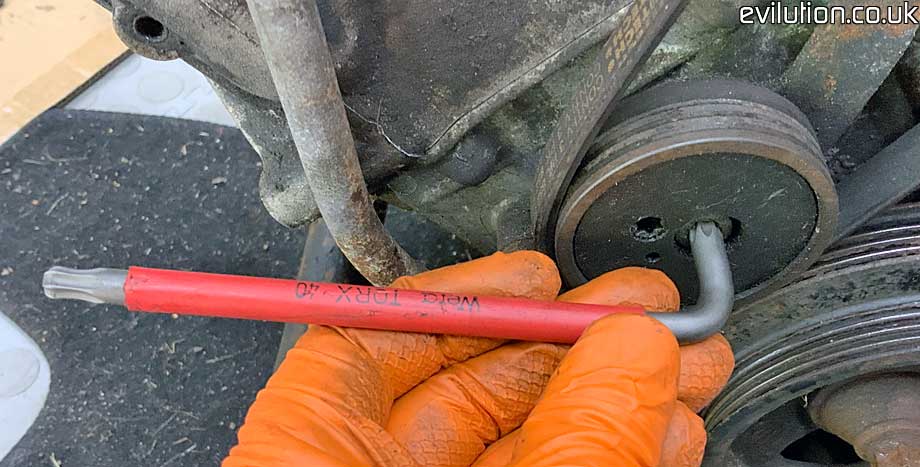

Using the same Torx40, put it in the hole just to the left of the previous bolt and turn it anticlockwise. The concentric pulley moves over even further.


The rest of the information held in this guide is locked to Supporter 6, Supporter 12, Supporter 12+, and Business members of Evilution only.

Use the buttons below to login or find out about becoming a premium member.
