451 OBD Pin Out

Mod Details
PremiumNo Difficulty Mod ID927 Creditevilution For451 Fortwo Linkhttps://www.evilution.co.uk/mod/451-obd-pin-out.htm Copy to Clipboard

OBD Socket Location

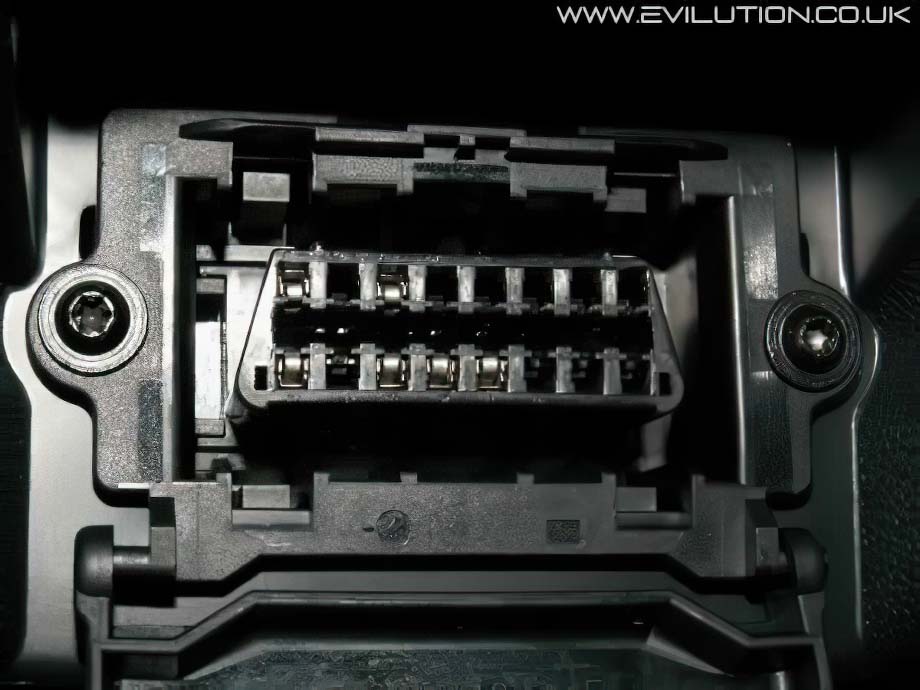

999cc smart – in front of the driver’s knee nearest to the centre of the car under the dash.

The 999cc smart has a flap down cover that protects the socket.

999cc Smart

Pin 1 No connection
Pin 2 No connection
Pin 3 No connection
Pin 4 Negative earth
Pin 5 Negative earth
Pin 6 CAN high
Pin 7 No connection
Pin 8 Switched live +
Pin 9 No connection
Pin 10 No connection
Pin 11 No connection
Pin 12 No connection
Pin 13 No connection
Pin 14 CAN low
Pin 15 No connection
Pin 16 Permanent live +

The G2 smart uses ISO 15765-4 CAN to transmit data to the OBD.
