Cloning The 452 Roadster ECU

Cloning is a process where you take data from 1 item and copy it to another to make an exact replica.

Why Would I Need To Do That?

ECU’s have been known to fail from water ingress, electrical damage from fitting the battery the wrong  way around and also random failures such as short circuits, fried components and burnt tracks.

Can I Just Fit A 2nd Hand ECU?

Definitely not. Due to the data not matching, the car won’t unlock and the car will not start.

Can You Code 2nd Hand Units?

Nope. MB Star sees that the ECU has previously been coded and refuses to recode it.

How To Clone The ECU

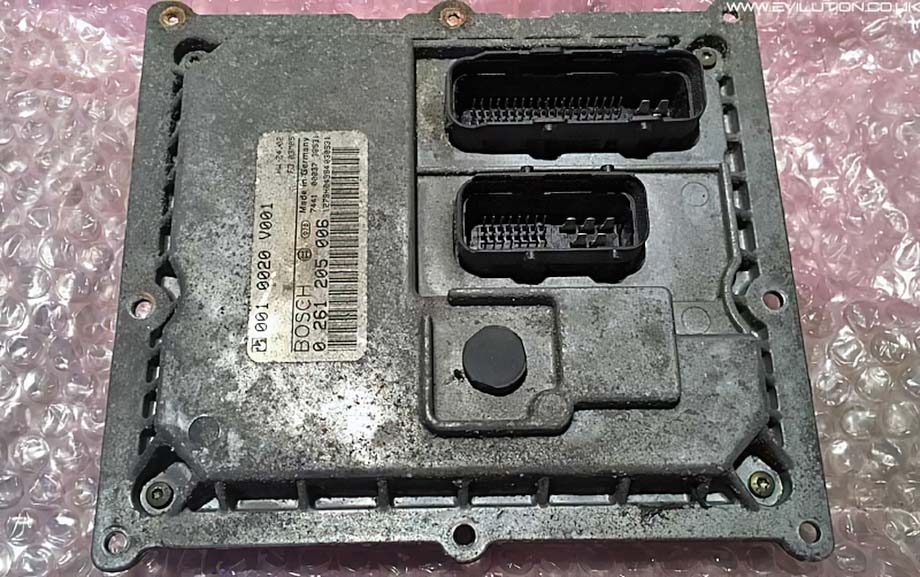

Disconnect the ECU’s electrical connections, remove the screws holding it to the air box and remove it from the car. Using a Torx15 screwdriver, remove the 4 bolts and flip it over.

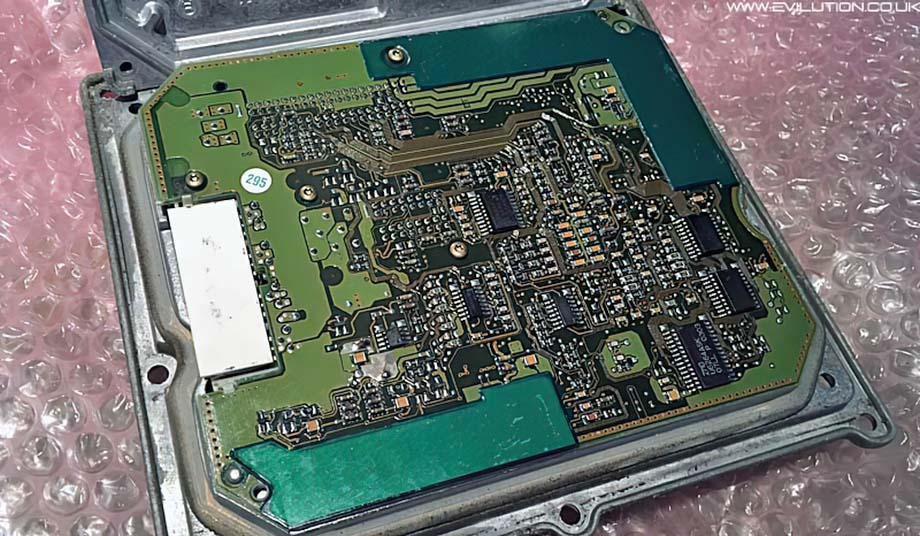

Lever the case apart being careful of the PCB if you use any tools to open it. The case has a bead of silicone around the outside to keep it waterproof.

Lift the PCB out. The 2 connectors also have a silicone bead around the base of each one. The chip that we are interested in is circled below.


The rest of the information held in this guide is locked to Supporter 6, Supporter 12, Supporter 12+, and Business members of Evilution only.

Use the buttons below to login or find out about becoming a premium member.

I Want Someone Else To Do It For Me

These people clone SAM units so cloning an ECU should be easy for them. Ask them and find out.
