453 Reversing Camera Pin Out

Mod Details
PremiumYes Difficulty Mod ID1631 Creditevilution For453 Fortwo/Forfour Linkhttps://www.evilution.co.uk/mod/453-reversing-camera-pin-out.htm Copy to Clipboard

Touch Screen Connections

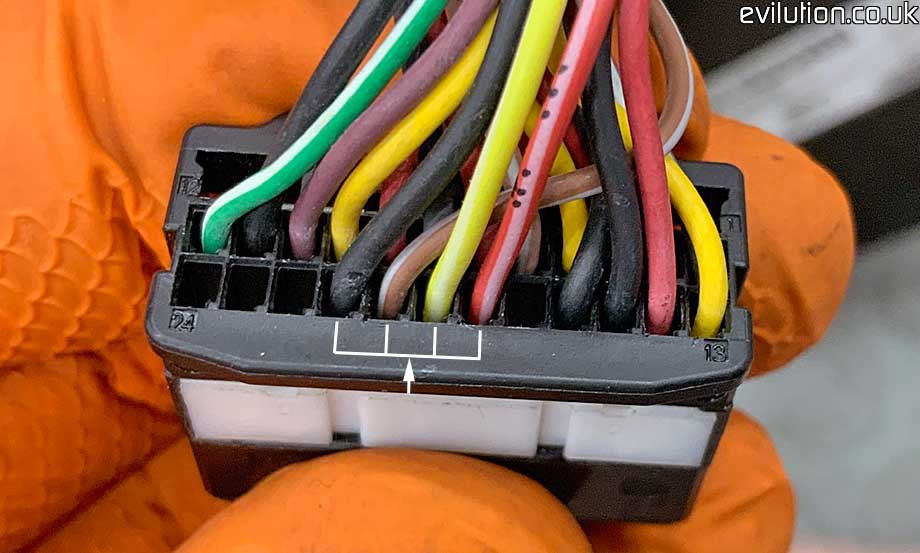

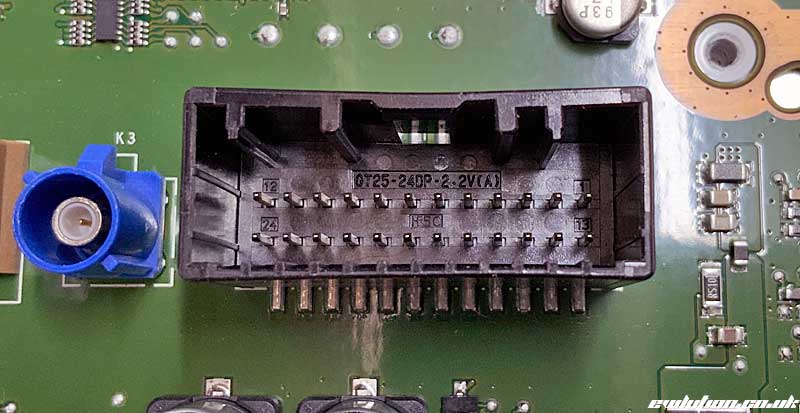

This is the 24 pin connector on the back of the touch screen unit.

Pins 18, 19, 20 and 21 on this connection are for the reversing camera.
If you don't have the camera fitted from factory, these pin locations will be empty.

Terminals

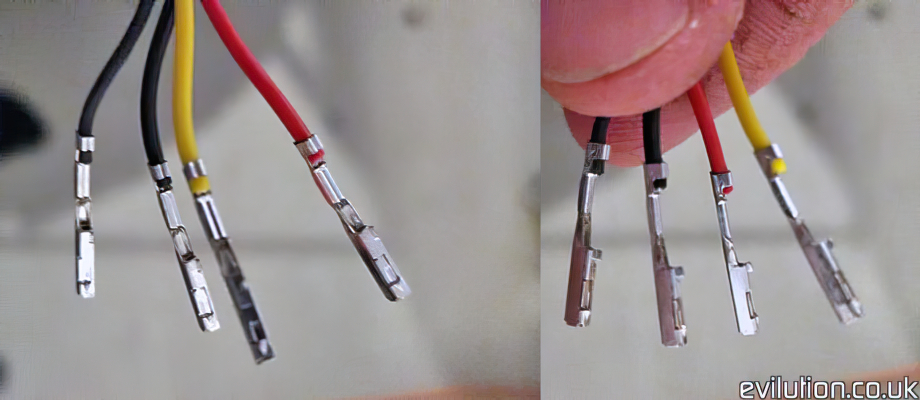

From what I can tell, these are TE Connectivity 025 receptacles. Search for 1801069-2 (It's a best guess).

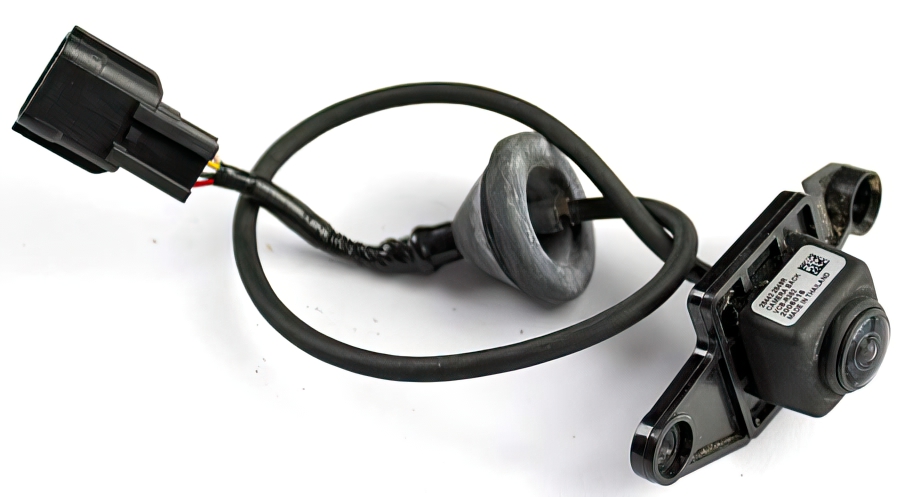

Reverse Camera Connections

Connections Table

Attention

The rest of the information held in this guide is locked to Supporter 6, Supporter 12, Supporter 12+, and Business members of Evilution only.
