Zero Degree Rear Camber

Mod Details
PremiumYes Difficulty Mod ID1397 Creditevilution For450 Fortwo452 Roadster Linkhttps://www.evilution.co.uk/mod/zero-degree-rear-camber.htm Copy to Clipboard

-2 Degrees Of Camber

If you look at the back wheels of a 450 fortwo, 451 fortwo or Roadster, you'll notice that the tops of the tyres
are further in than the bottom part of the tyres. Like they aren't perpendicular to the ground.

That's because they aren't perpendicular. The are actually angled in by -2 degrees.

Why?

It improves handling at the rear of the car as the weight shifts putting less side load on the tyre.

Any Problems?

It does tend to wear the rear tyres on the inside edge a lot quicker. It can be hard to spot.

Is There A Fix?

Personally, I don't see a problem with the camber but some people don't like it and want rid.
If they aren't driving around like a lunatic and want their tyres to last longer, that's up to them.

Spacers

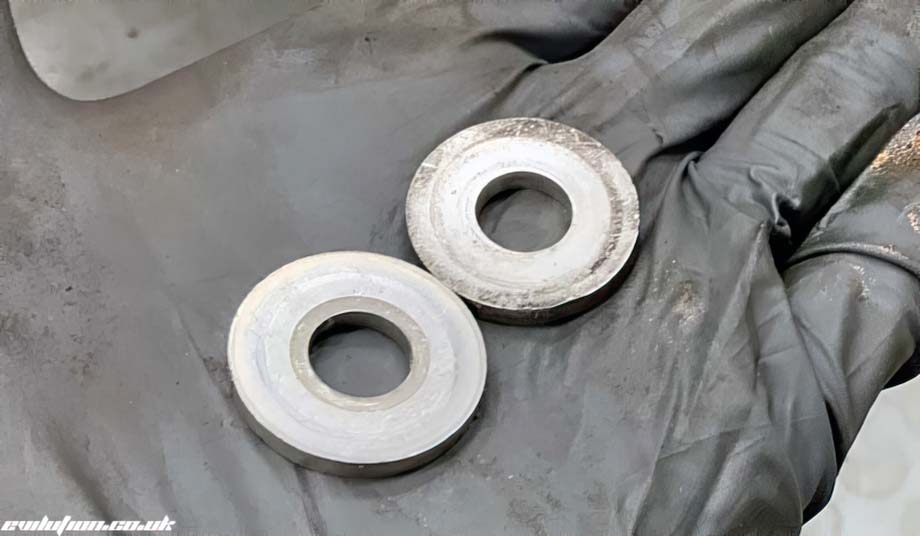

It's as simple as adding 2 washers.

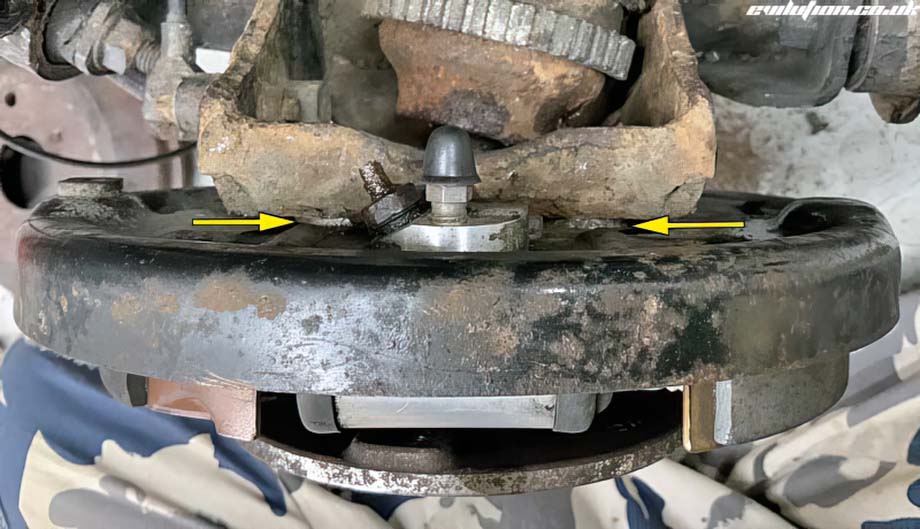

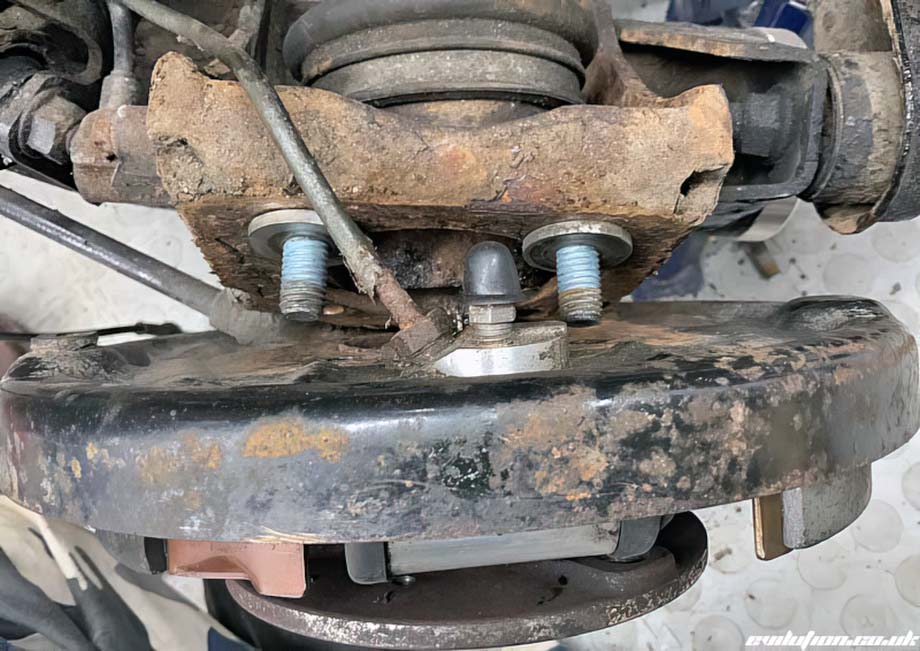

Placed between the De Dion hub and the brake drum backing plate.

When the rear bearings are tightened down with the 2 washers in position, the camber can be reduced
or totally removed. It depends totally on the thickness of the washer.

You can check my maths if you like.

Attention

The rest of the information held in this guide is locked to Supporter 6, Supporter 12, Supporter 12+, and Business members of Evilution only.

Use the buttons below to login or find out about becoming a premium member.
