Mod DescriptionHandy guide for changing bulbs, fitting HIDs or modifying the units.
Mod DetailsPremiumNo Difficulty Mod ID451 CreditEvilution For Linkhttps://www.evilution.co.uk/mod/450-headlight-removal.htm Copy to Clipboard

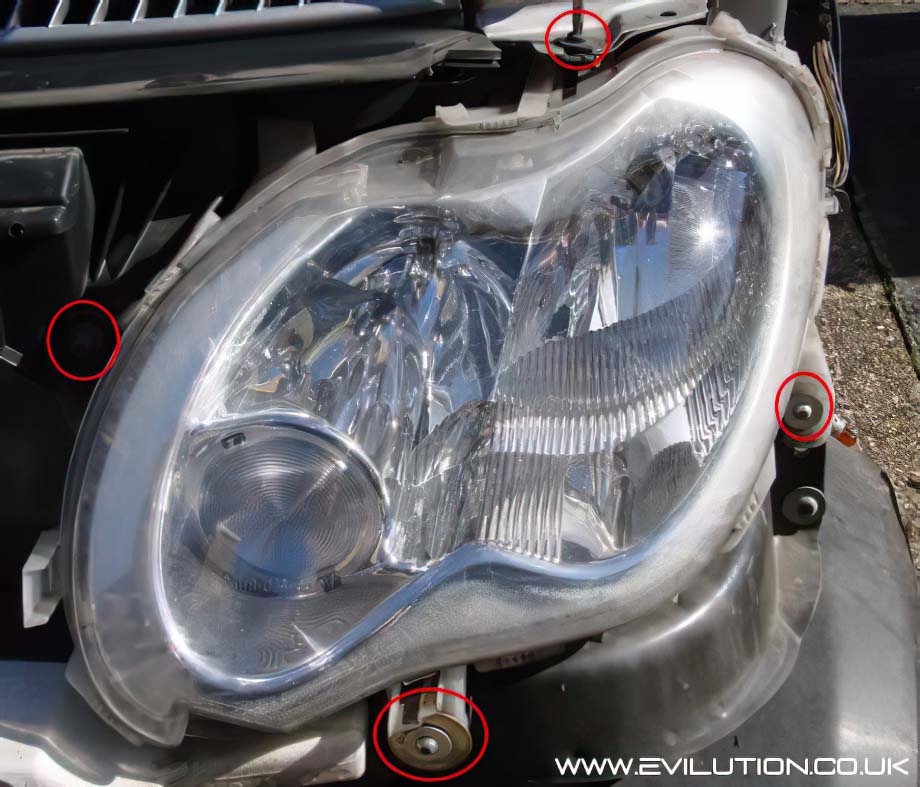

To gain access to the headlights and the fixings you have to remove the front panels. This is what you are left with, all the fixings are circled.
..torx bolts and screws.
Pull the light directly towards you to access the wiring behind it.

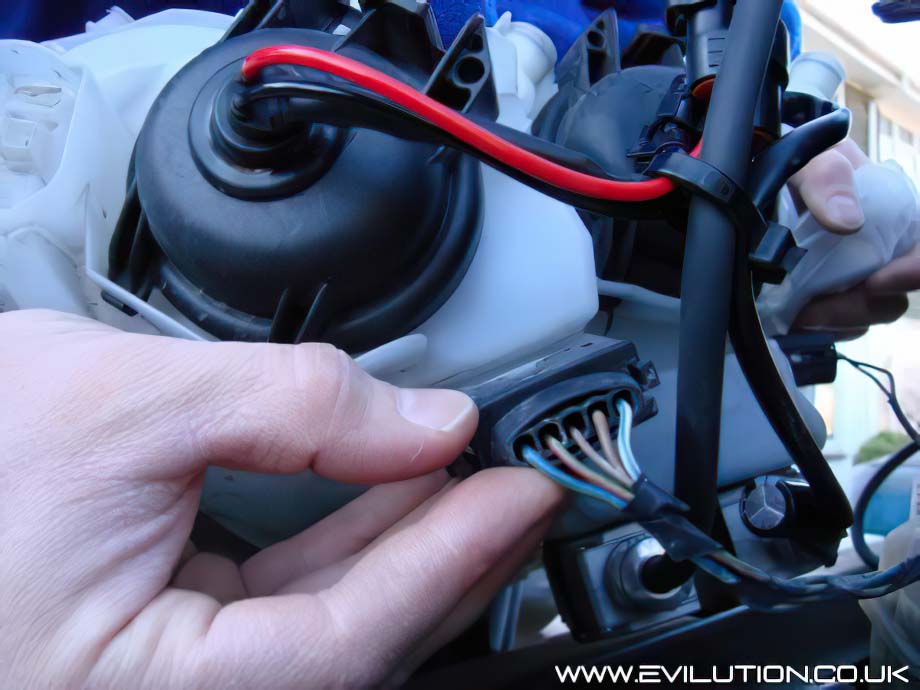

The main wiring connector pulls out by pressing the tabs each side and pulling.

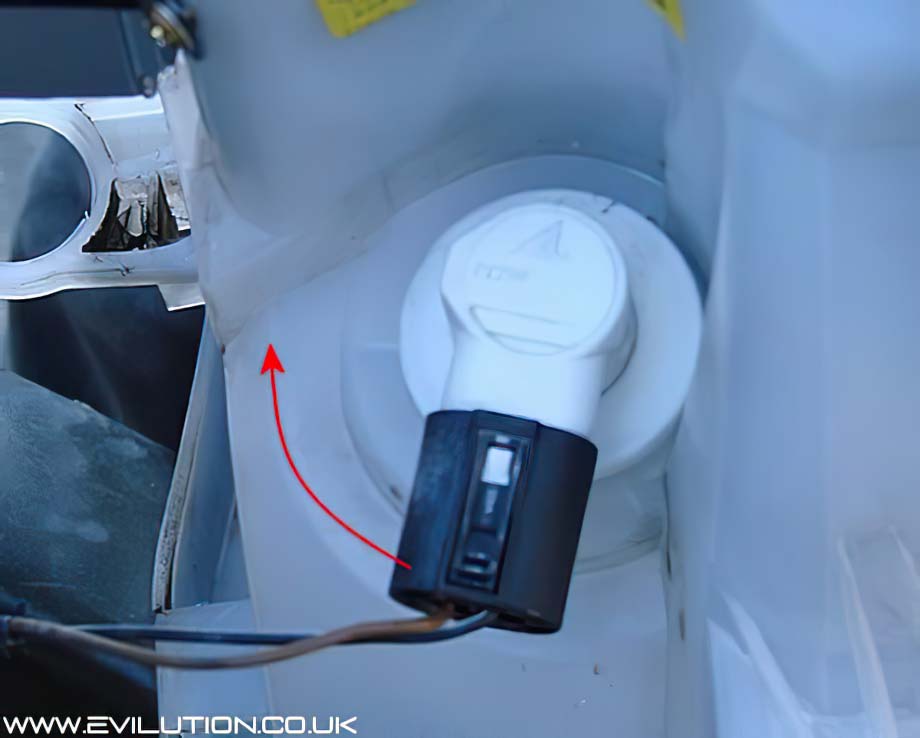

Grab the indicator bulb holder and twist it about 40 degrees and pull it out.
You can now pull the headlight away from the car.
Repeat on the other side if necessary.
To gain access to the headlights and the fixings you have to remove the front panels.

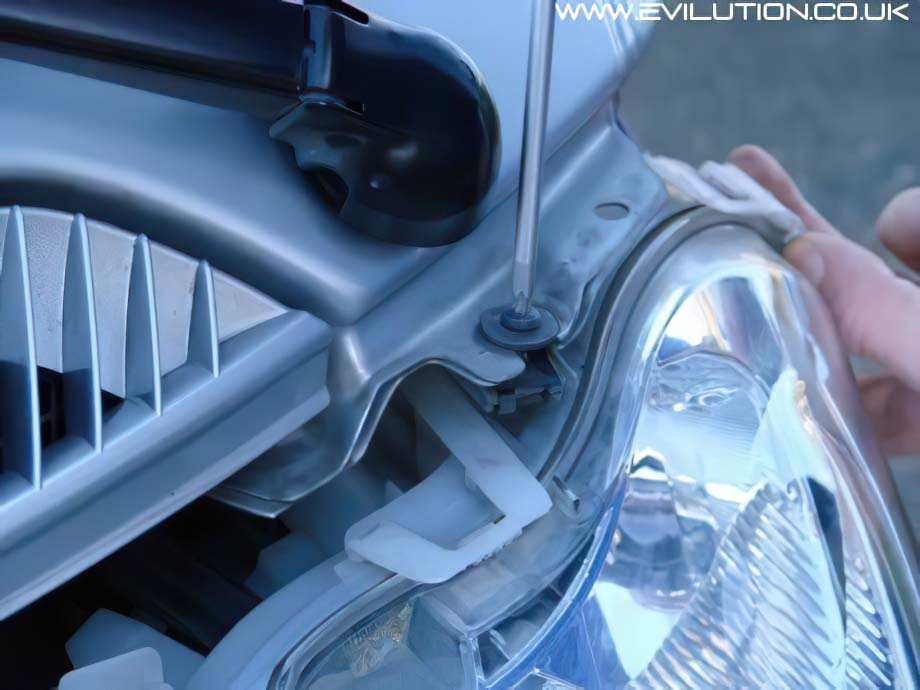

Remove the Torx25 screw from the top.

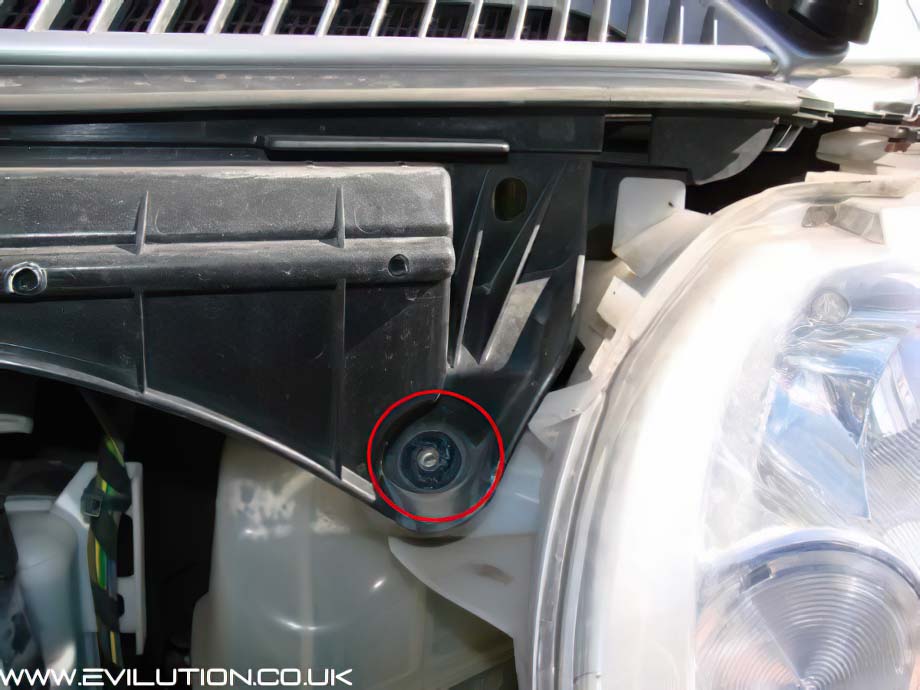

Remove the 10mm bolt from the under side.
You’ll need to hold the 10mm nut on the back.

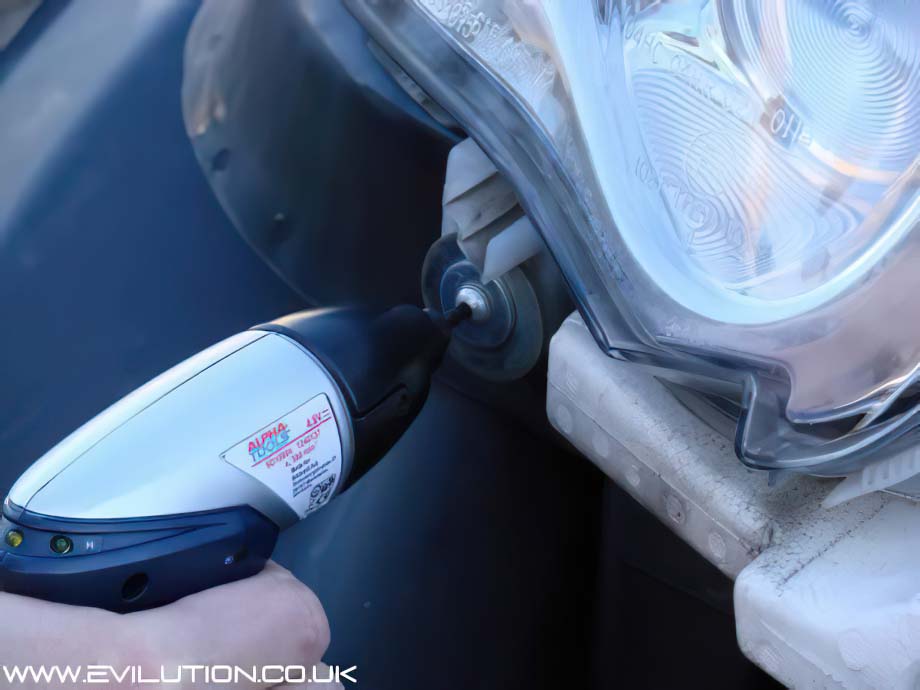

Underneath there’s a Torx30 bolt to remove…

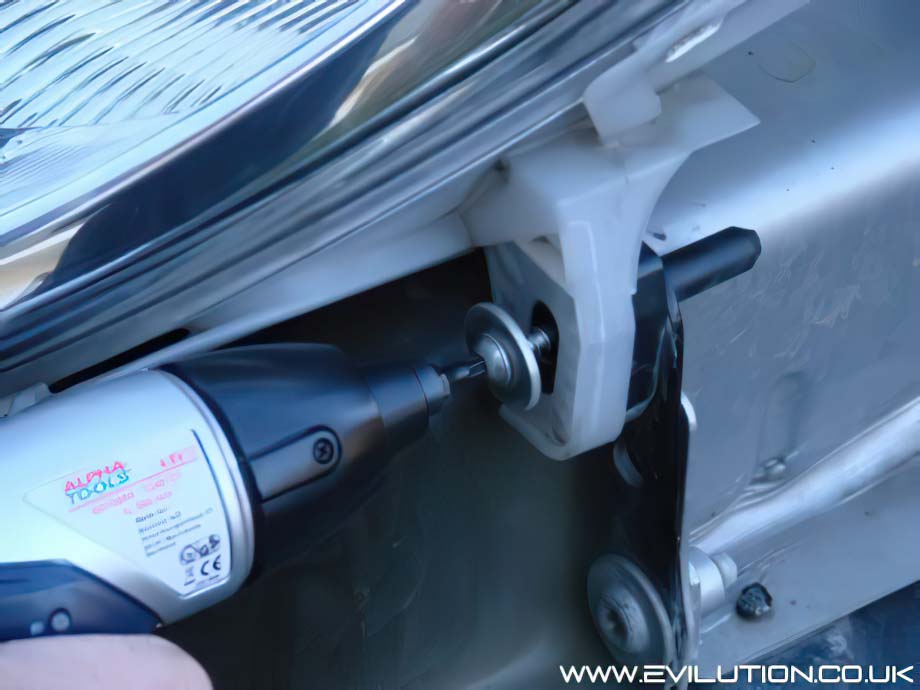

…and then the Torx30 screw from the inside edge of the headlight.

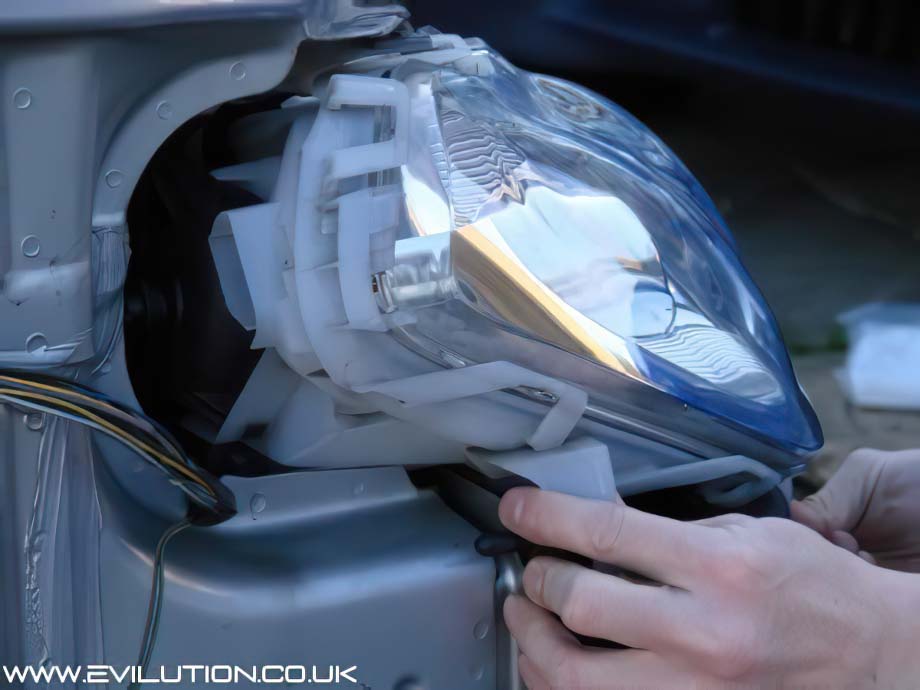

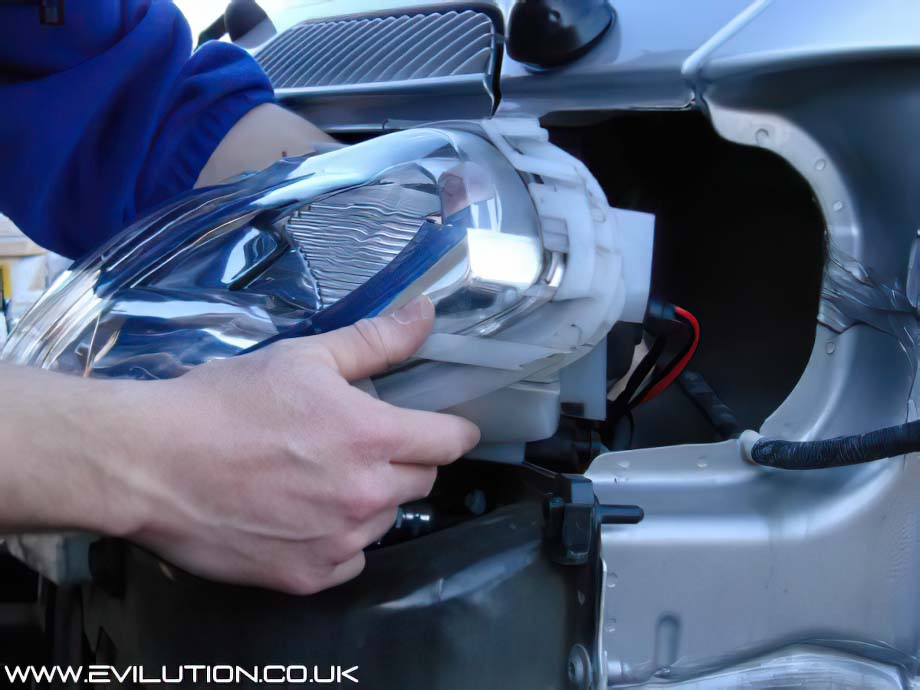

You can now pull the headlight away from the car…
…so you can easily reach behind it to disconnect the connections.
