Roadster Bonnet Removal

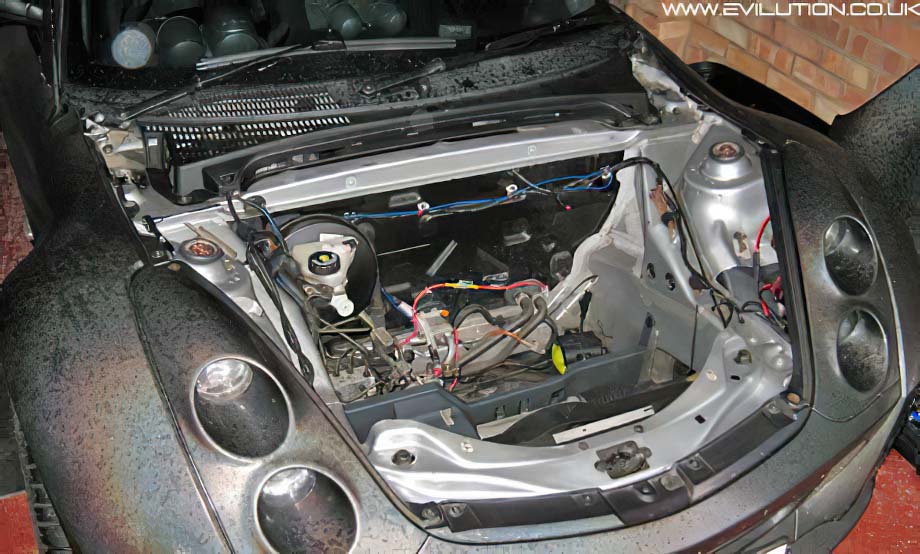

Remove the bonnet so you can get the scuttle panel off to waterproof the wiper bucket or change the wiper motor
Remove the bonnet so you can get the scuttle panel off to waterproof the wiper bucket or change the wiper motor

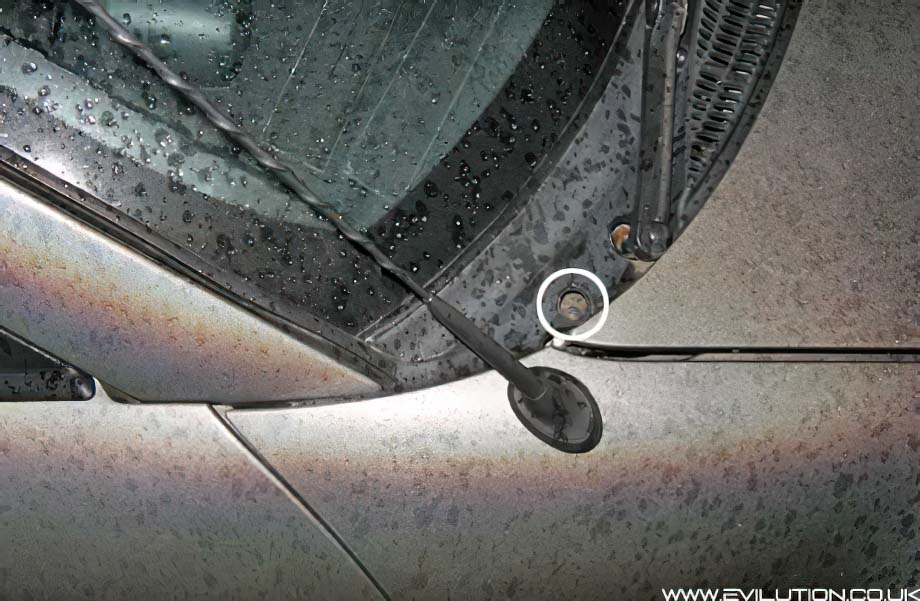

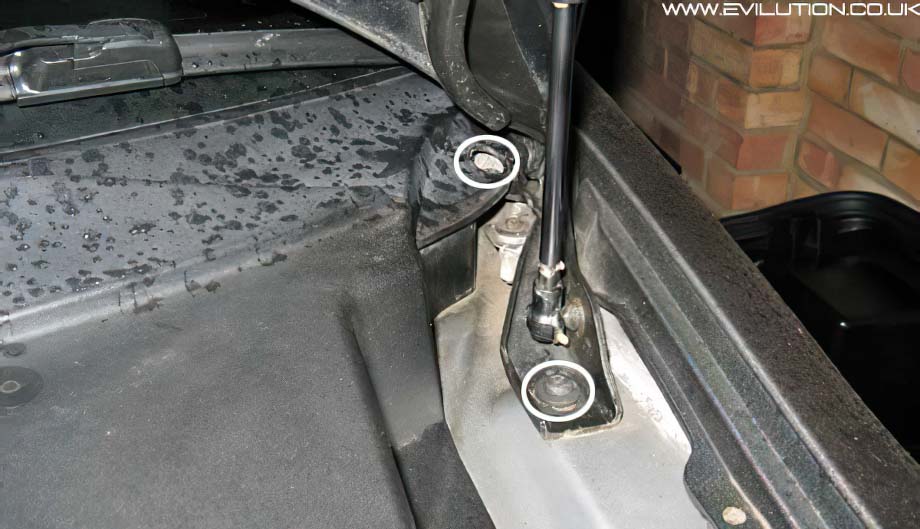

Remove the 2 Torx bolts.

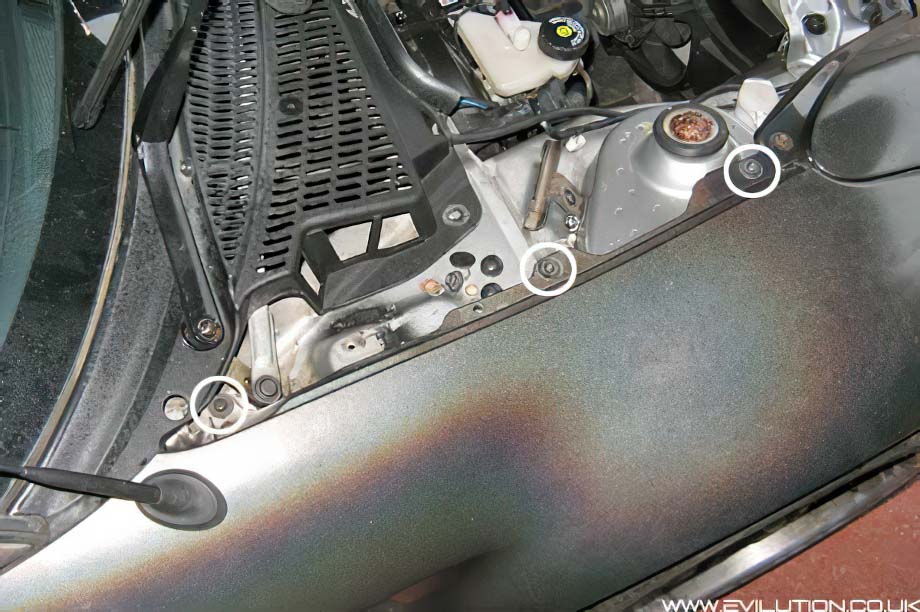

You may find clearance a bit easier if you remove the Torx screws from the wings.
This allows you a bit of space to get the bonnet hinges out of the scuttle panel.
Ideally you should have 2 people but it can be done on your own if you have no friends.
